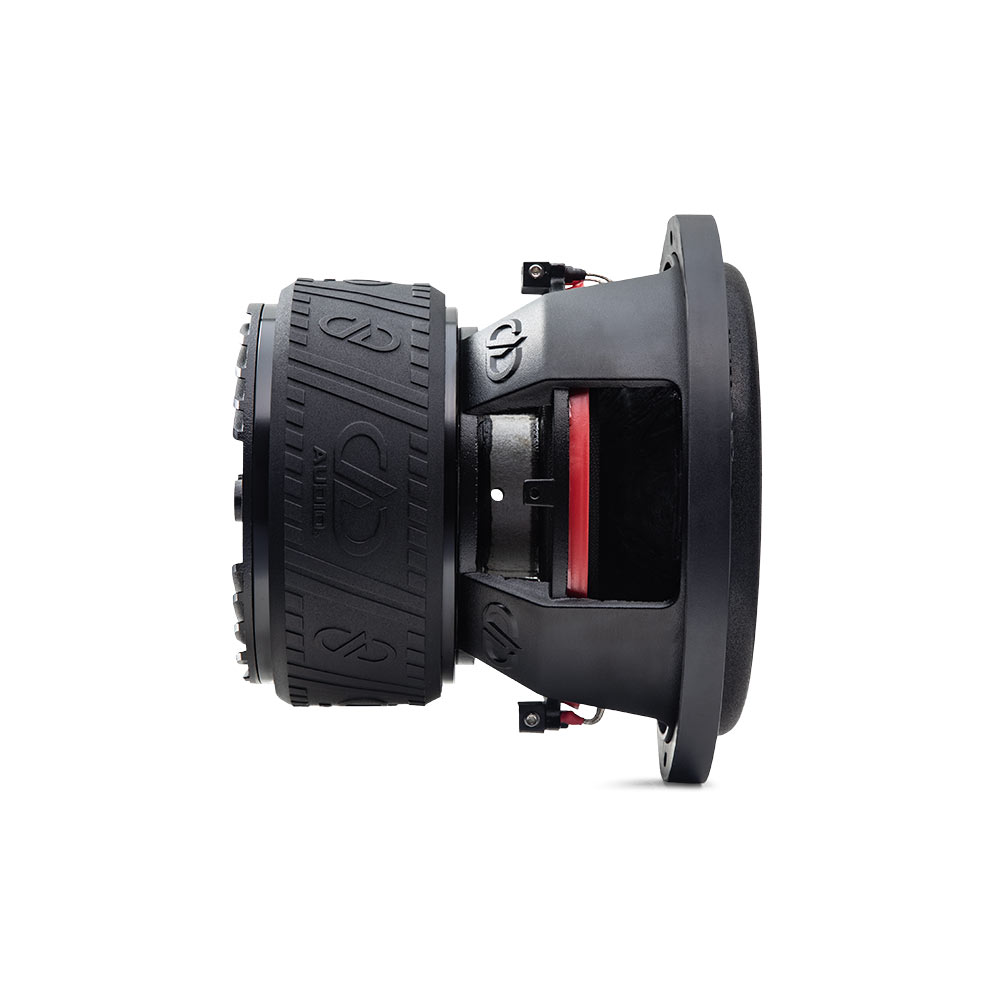

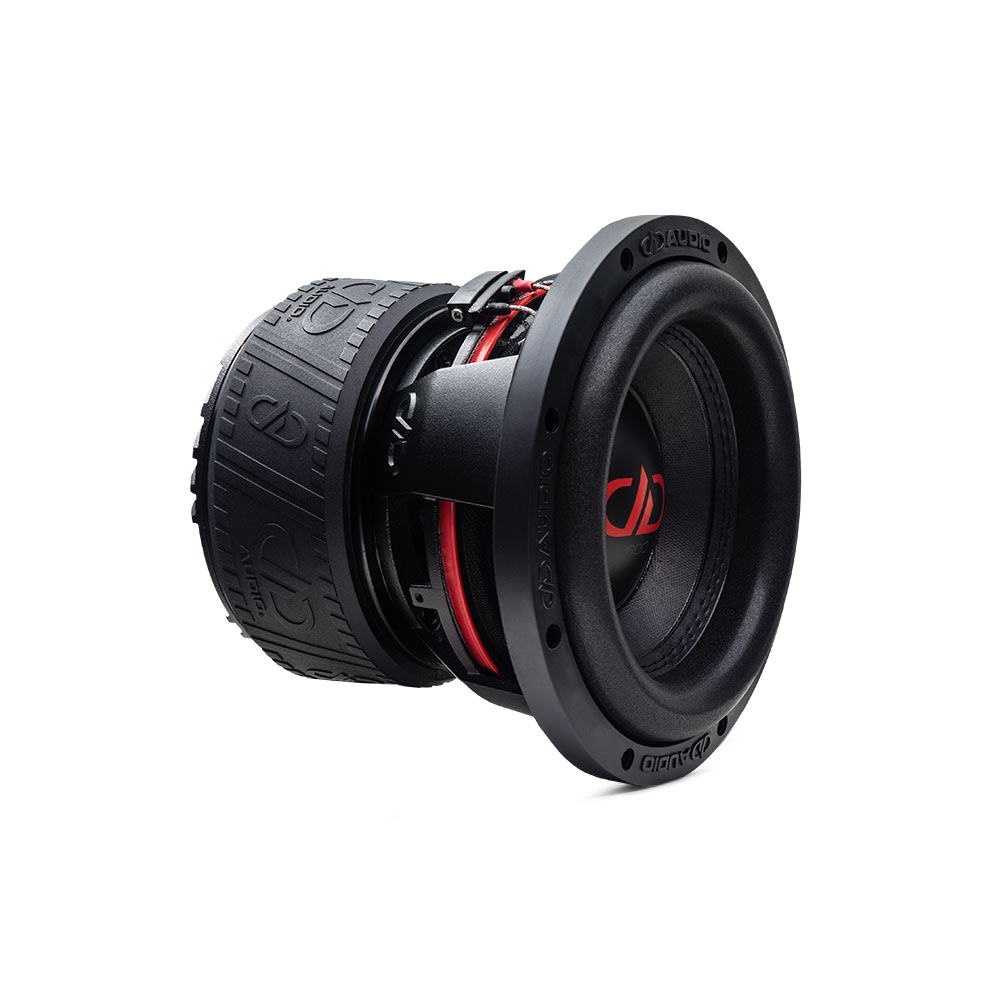

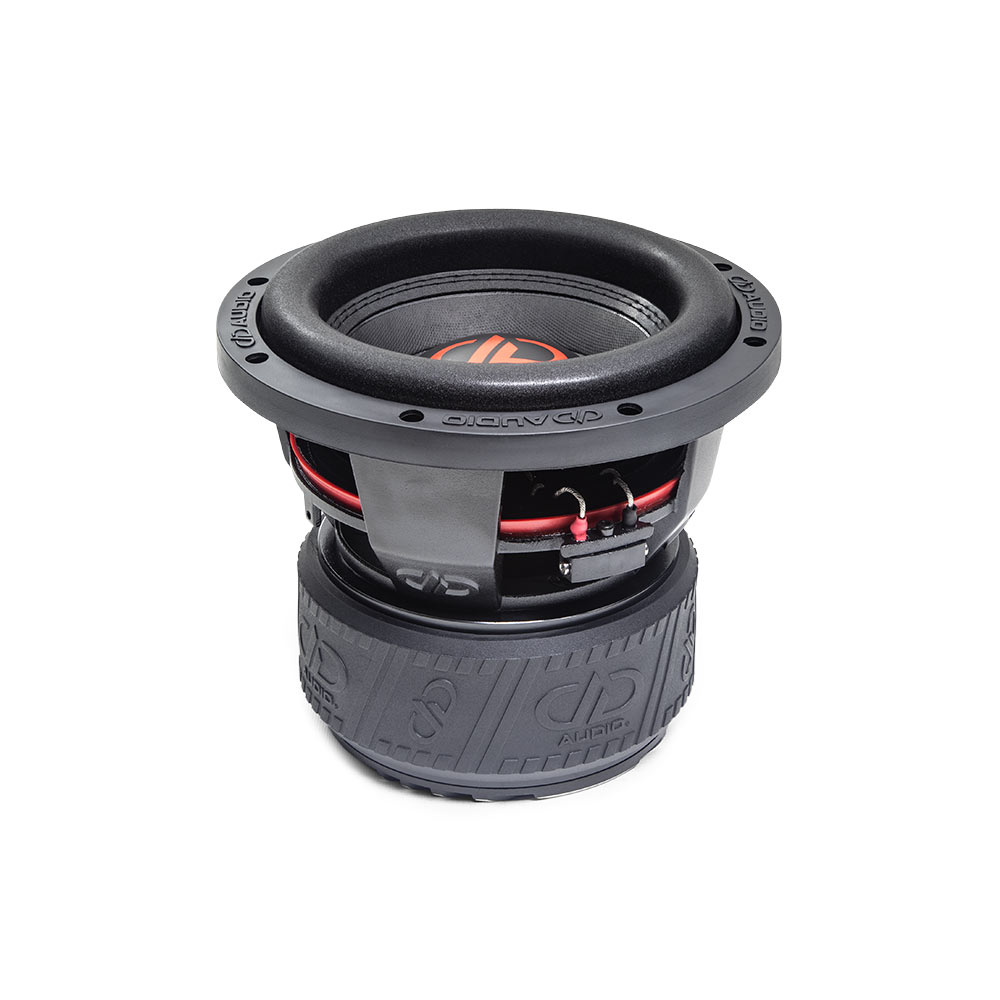

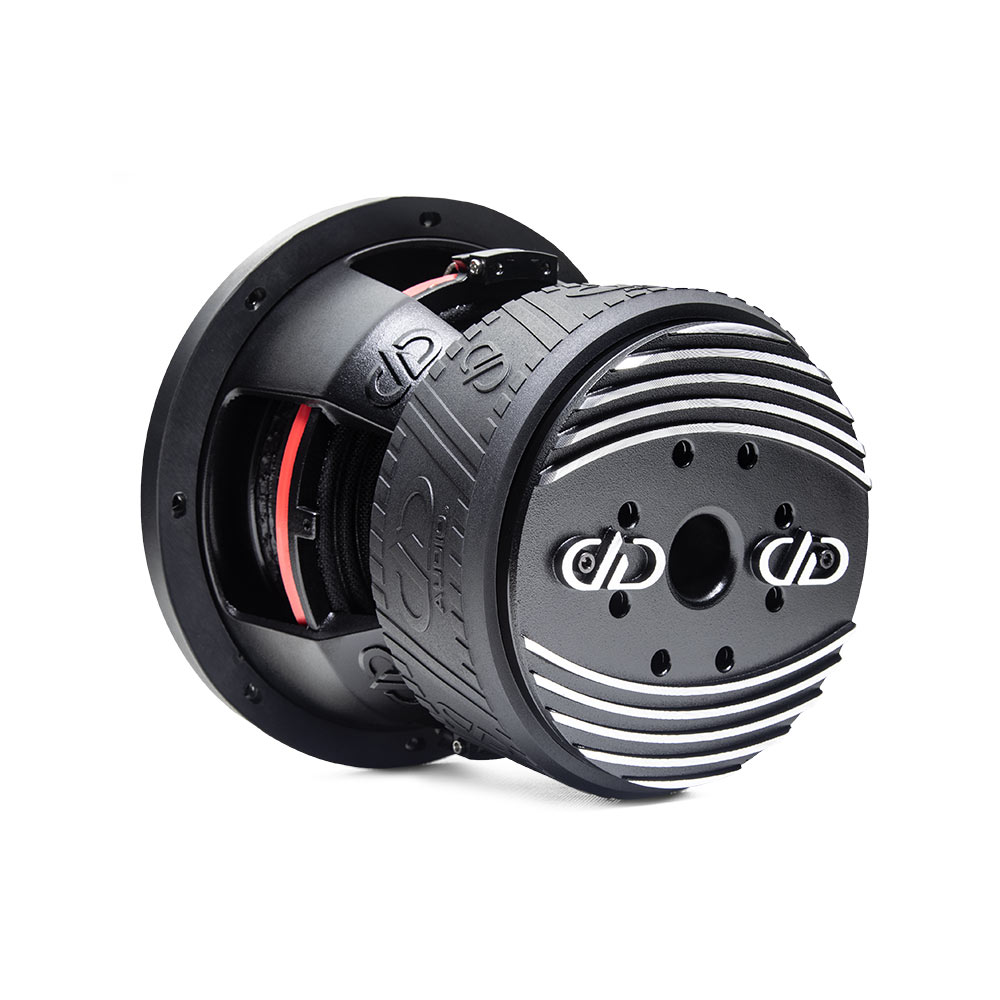

DD Redline series 615 Subwoofer



DD Redline series 615 Subwoofer

SKU N/A Categories , ,

Series The 600 Series is a great entry point for a higher performance system design that keeps the vehicle as close to stock as possible. These subs will perform like a boss on as little as 300-600 Watts, meaning even multiple woofer systems can be driven with one moderate powered amplifier. This keeps electrical upgrades minimal with less added strain on the vehicle. With a high energy, double stack motor paired with a laminated triple layer poly cotton spider suspension the 600 Series works best with vented and multi-order enclosures.


Speaker Size (In): 15
Speaker Size (MM): N/A
Watts RMS: 300 – 600
Watts Peak: 1800
Impedance: D2 / D4
VCD (In): 2.5
Piston Diameter (In): 12 3/4
Piston Diameter (MM): N/A
Fs (Hz): 26.92
Qms: 3.965
Qes: 0.82
Qts: 0.68
Vas (Liters): 114.4
Xmech (In): N/A
Xmech (MM): 60
Xmax (In): N/A
Xmax (MM): 13
Frame OD (In): 15 1/4
Frame OD (MM): N/A
Frame OD w/ Gasket (In): 15 3/8
Frame OD w/ Gasket (MM): N/A
Mounting Diameter (In): 13 7/8
Mounting Diameter (MM): N/A
Mounting Depth (In): 2 1/2
Mounting Depth (MM): N/A
Motor Diameter (In): 6 1/2
Motor Diameter (MM): N/A
Motor Depth (In): 2 1/2
Motor Depth (MM): N/A
Woofer Displacement (CuFt): 0.15
Woofer Displacement (Liters): N/A
Ported Enclosure (CuFt): 3.0 – 5.0
Ported Enclosure (Liters): N/A
Shipping Weight (Lbs): 21
Shipping Weight (Kg): N/A
