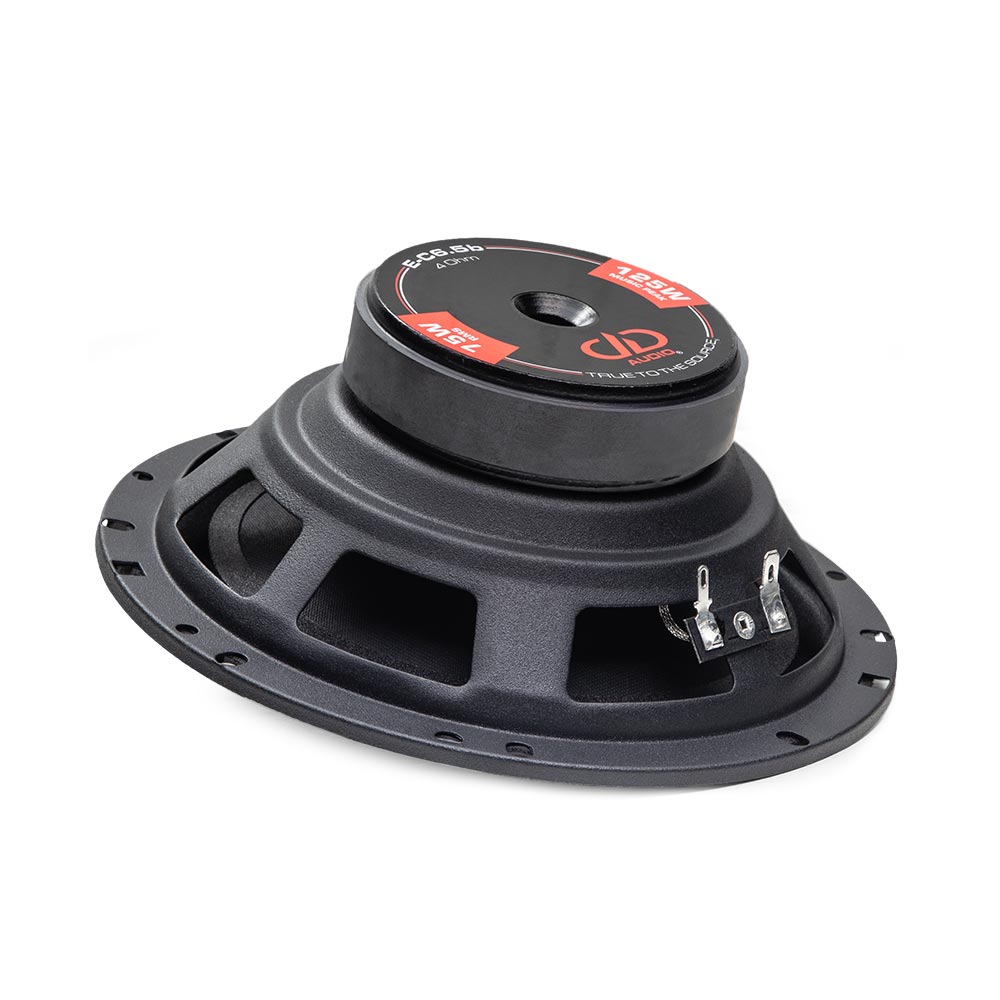

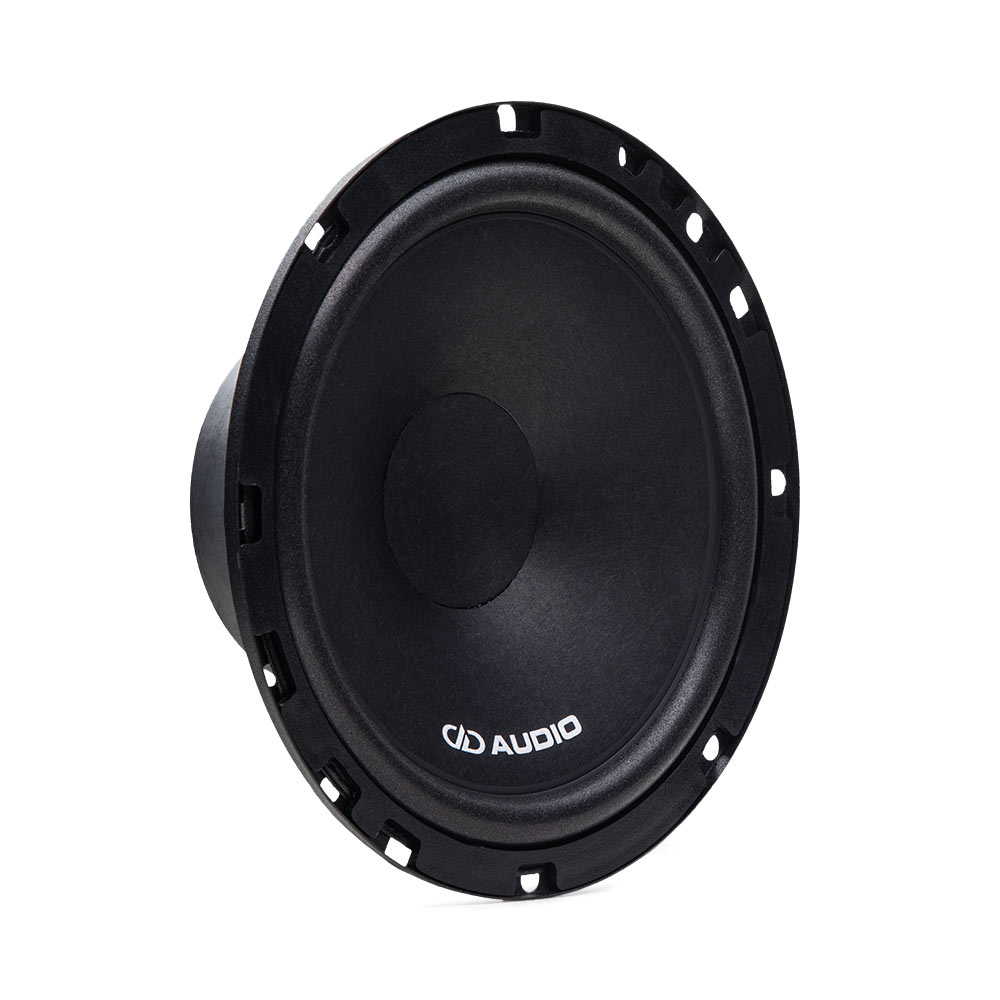

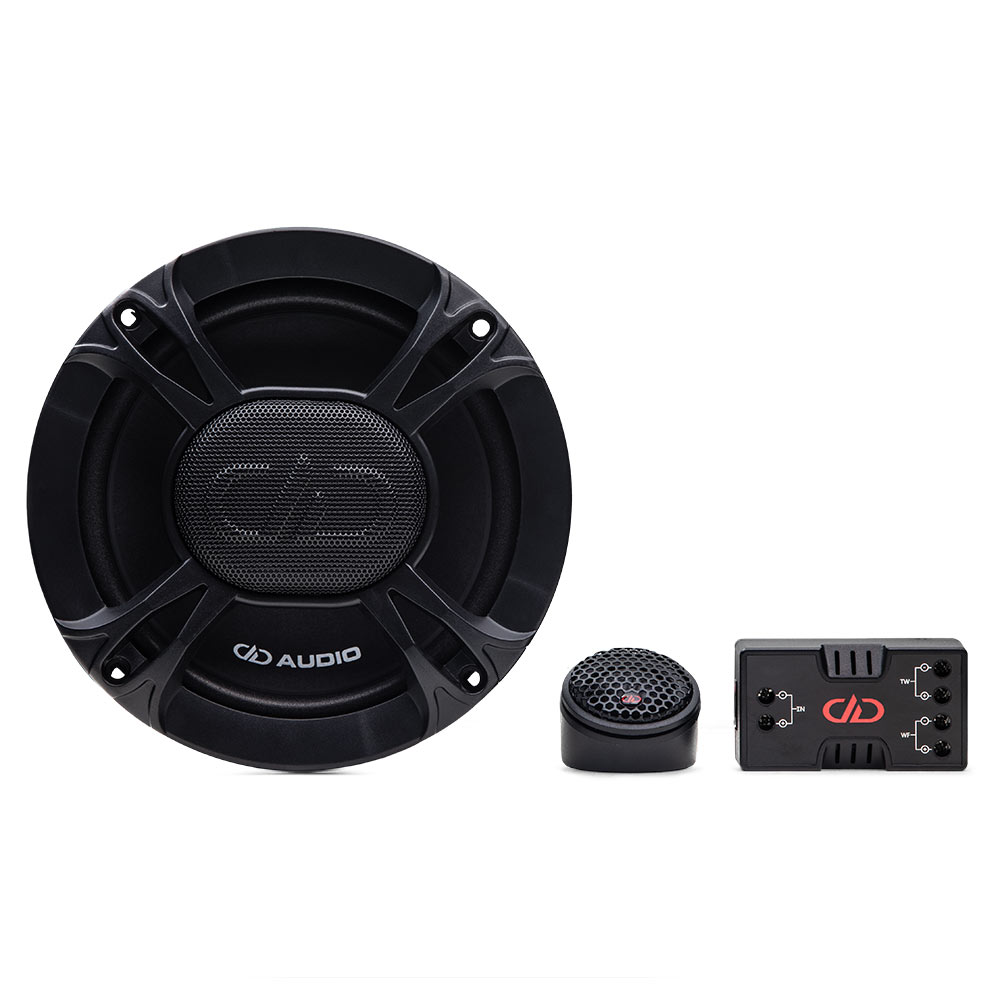

The 6.5-inch woofer features an injection molded poly cone, rubber surround, and rigid steel frame. For reduced inductance, extended high-frequency roll off, and increased efficiency the voice coils features a double slit former and the motor utilizes a copper pole cap. The soft parts are driven with a high flux 11 Oz ferrite magnet motor.
The 20-mm silk dome tweeter comes with flush-mount and surface-mount solutions.
The crossover networks are built with premium components including mylar capacitors, segmented air-core inductors and poly fuses for tweeter protection. Two selectable tweeter levels are provided for fine high-frequency tuning.
Read the E Series Product Spotlight on The DDownlow.
Visit our OEM page for upgrade suggestions for your vehicle.
|Speaker Size (MM):||20|
|Mounting Diameter (In):||1 19/32|
|Mounting Depth (In):||17/32|
|Speaker Size (In):||6.5|
|Frequency Response (Hz):||50 – 20k|
|Mounting Diameter (In):||5 5/8|
|Mounting Depth (In):||2 1/2|
|Shipping Weight (Lbs):||10|
