SS5.500
AB 4ch + D Mono
£329.00
Availability: 1 in stock
Five channel systems can be easily configured and tuned with the new SS5.500. This multichannel amp features an AB Class 4 channel paired to an efficient D Class subwoofer mono channel giving your system the best of both circuit designs.
High fidelity audio is within the realm of every car with the SS5.500.
Features
12dB/Oct High Pass/Low Pass X-Overs
Dual Toroidal Power Supply
Heavyweight DD Aluminum Chassis
Set Screw Power and Speaker Terminals

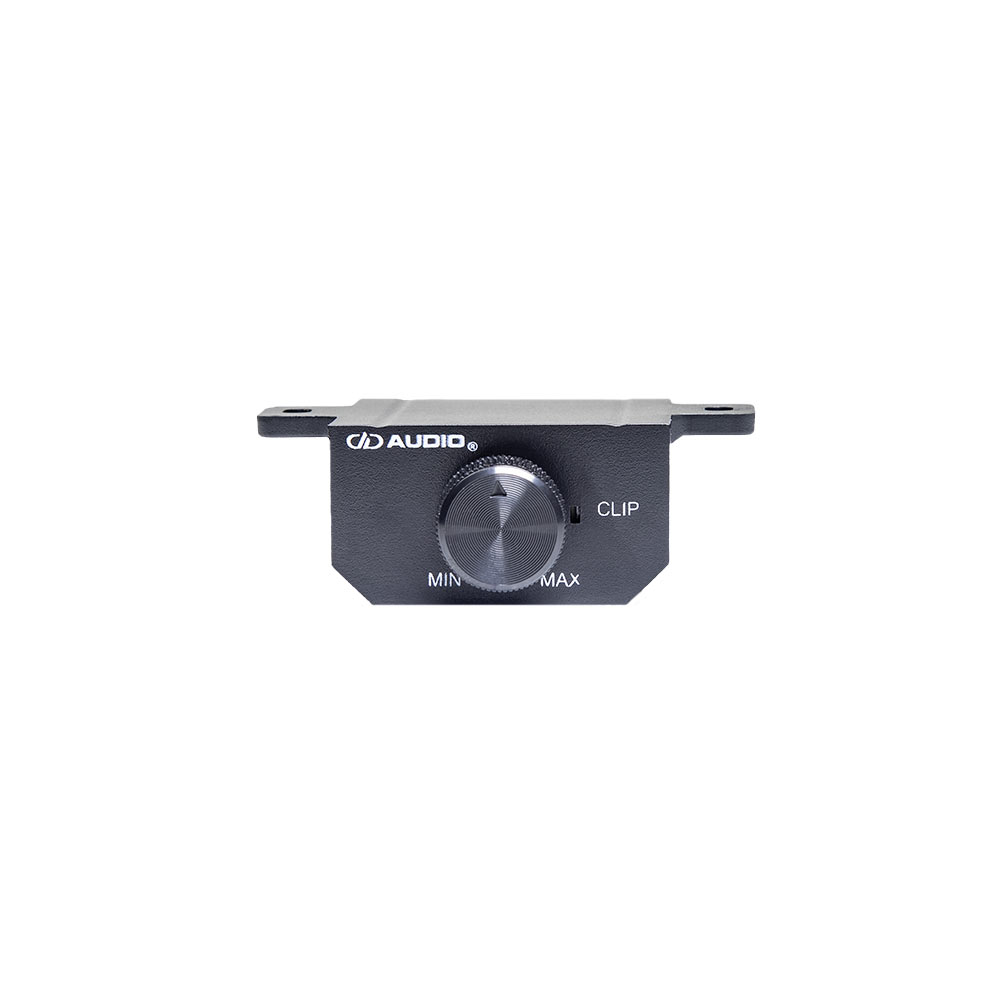

Remote Gain Control
Specifications
| Frequency Response (Hz) | 20 – 20k |
| Operating Voltage | 9 – 16 |
| Test Voltage | 14.4 |
| Input Channel | 6 |
| Output Channel | 5 |
| Total Wattage | 980 |
| Continuous Wattage @ 4Ω | 80 x 4 |
| Continuous Wattage @ 2Ω | 120 x 4 |
| Continuous Wattage @ 1Ω | 500 x 1(sub ch) |
| Max Current Draw | 100 |
| RCA Input Voltage Sensitivity | 8 – 0.2 |
| High-Level Input Voltage Sensitivity | 20 – 1.1 |
| RCA Input S/N | > 95 |
| Damping Factor | > 100 |
| THD | < 1.0% |
| High-Pass Filter | 20 – 5k |
| Sub-Sonic Filter | 10 – 50 |
| Low-Pass Filter | 50 – 5k |
| Remote Controller Included | Yes |
| Power Wire Gauge In | 4 |
| Speaker Wire Gauge Out | 12 |
| Dimensions (In) | 14.6 x 7.3 x 2.4 |
| Dimensions (MM) | 371 x 185 x 60 |
| Weight (Lbs) | 5 |
